5-2069716-3,2023344-3,2023348-2,5-2023347-2 LCEDI connector,2023344-3,5-2023347-3,5-2069716-3,I-PEX 20455-030E,20455-040E ,SGC cable,MCX cable,MCC cable,I-pex SGC cable |
|
|
| Product name：5-2069716-3,2023344-3,2023348-2,5-2023347-2 LCEDI connector,2023344-3,5-2023347-3,5-2069716-3,I-PEX 20455-030E,20455-040E ,SGC cable,MCX cable,MCC cable,I-pex SGC cable |
| Item：TE connector |
| Price：according to quantity |
| Details： |
 |

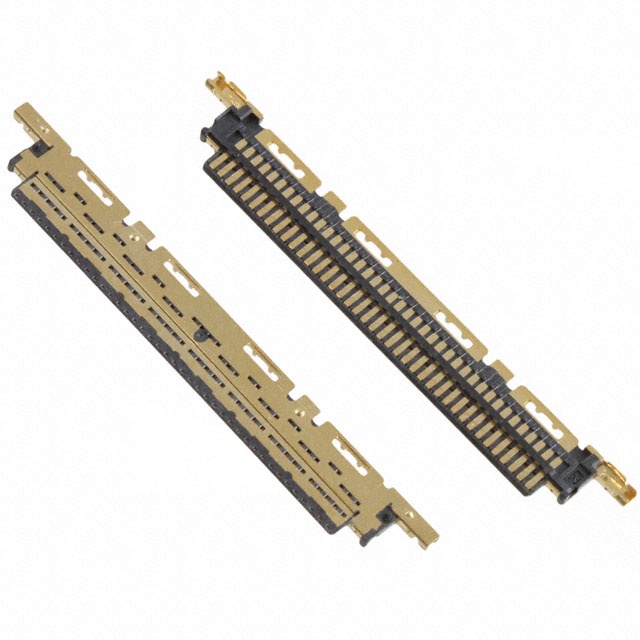

LCD Coaxial Embedded Display Interface
|
|
Designed to provide exceptional electrical performance
|
 TE Connectivity Amp introduces the next generation LCD Coaxial Embedded Display Interface (LCEDI) family of connectors designed to provide exceptional electrical performance in both low voltage, differential signaling (LVDS) and embedded DisplayPort (eDP) applications. This family of connectors was recently selected by VESA (Video Electronics Standard Association) as the global standard connector for an LED backlight wide (16x9) panel interface. Its ultra-low profile mating configuration (1.1 mm height) makes it ideal for the slim LED backlight LCD panel of advanced notebook personal computers.
TE Connectivity's LCEDI connector family accommodates consistent digital data transmission through one, two, or four DisplayPort standard lanes at a reduced bit rate of 1.62 Gbps or high bit rate of 2.7 Gbps through each lane, and even faster data rates over different wiring schemes. The product family offers high density for notebook PC applications, minimizing space and accommodating future pin out for LED backlight technology. Datasheet |
| Features |
Applications |
- Twin leaf contact structure
- Mixed cable use
- Micro coax (twin coax AWG #40 or smaller)
- Discrete wire (AWG #32 or smaller)
- Friction lock mechanism at shell when mated
|
- DVD/Blu-ray players
- Render massive 3D imaging
- Slim LED backlight LCD panel
|
Cell Phone: +86-158-8966-1771 Atten: Jacky
E-mail: jacky@micro-coaxial.com
Skype: jacky882010
MSN: jacky882010@hotmail.com
5-2069716-3, 2023344-3, 2023348-2, 5-2023347-2 LCEDI connector, 2023344-3,5-2023347-3,5-2069716-3,I-PEX 20455-030E, 20455-040E
MCT provide electronics, automotive, medical and special application Cable Supplier, OEM Cable, eDP cable, custom cable assemblies,
custom cable manufacturer,Round cable, Wire Harness,Flat Cable,LCD Harness, LCD cable, display cable, LVDS cable,Coaxial cable, SGC cable, MCX cable, MCC cable,I-pex SGC cable |
 |
