JST XSR connector,0.6mm picth IDC connector,discrete wires

Product name：JST XSR connector,0.6mm picth IDC connector,discrete wires

Item：XSR

Details：

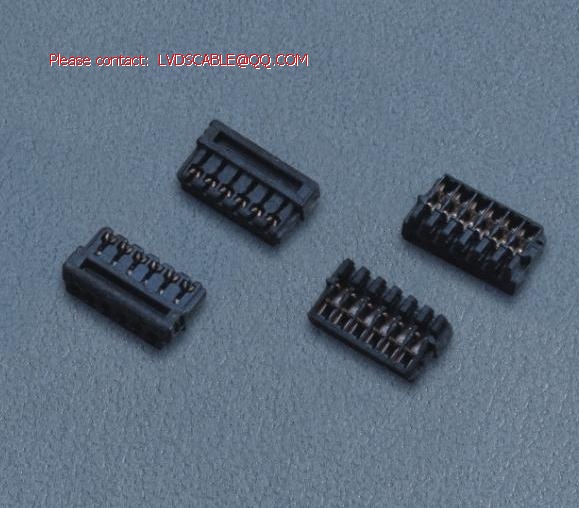

JST xsr connector,0.6mm picth IDC connector,discrete wires,xsr Wire-to-Board Connector

JST xsr CONNECTOR 0.6MM IDC Socket/Header or Housing/Wafer equivalent/replacement/replica/copy/substitute

JST Detailed Part No.
Wire to Board Insulation Displacement Connectors

xsr
Socket:02xsr-36S,04xsr-36S,06xsr-36S,10xsr-36S,16xsr-36S,20xsr-36S,22xsr-36S
Header:SM02B-xsrS-ETB,SM04B-xsrS-ETB,SM06B-xsrS-ETB,SM10B-xsrS-ETB,SM16B-xsrS-ETB,SM20B-xsrS-ETB,SM22B-xsrS-ETB

xsr CONNECTOR
Applicable to automatic ID machines

JST General Part No.

xsr,SUR,SSR,ASR,SH,SHD,SHLD,ACH,GH,ZH,SZN,PH,PHD,PA,SAN,XH,EH,NH,XA,HR,SCN,SM,JL,BHS,VH,SDN,HL,SL,BHM,BH,EL,SMF,NV,LC,VL,V,DV,VA,LV,VT,BD,RA,RC,RK,RX

xsr connector

This is the world's smallest 0.6mm pitch ID connector for discrete wires.
This wire-to-board miniaturised connector has a mounting height of 1.45mm and depth of 3.0mm.

Product Profile

Series	xsr connector
Category	Wire to Board Insulation Displacement Connectors
Type	IDC style IDC style, Disconnectable type

Specification

Pitch	0.6 mm
Current rating	0.2A
Voltage rating	30V
PC board mounting direction	Side entry

Compliant with RoHS.
(LF)(SN) as identification part number shall be displayed on a label.
When ordering RoHS compliant products, please inquire to the nearest
JST Sales Office, or order them with the described part number adding
(LF)(SN) as the identification marking after it

Welcome to contact us for more information or send the detail spec you need for OEM/ODM

Cell Phone: +86-158-8966-1771 Atten: Jacky

E-mail:    jacky@micro-coaxial.com

Skype:     jacky882010

MSN:      jacky882010@hotmail.com
